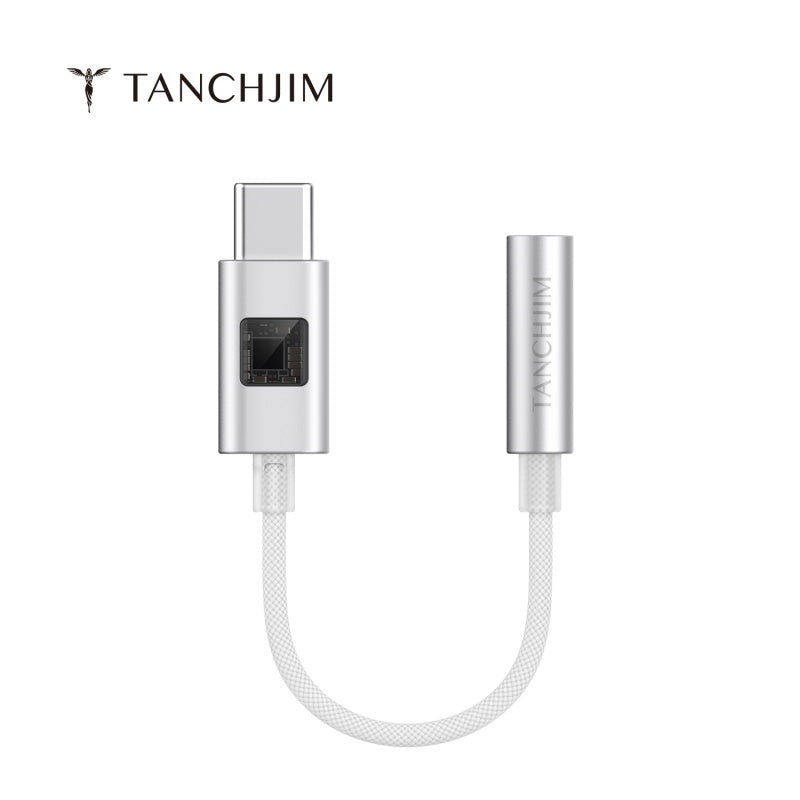

TANCHJIM Stargate II
High-performance HIFI portable DAC
- High-Performance DAC (CS43131)
- 3.5mm Output with Microphone Support
- Advanced DSP & Sound Effect Community
- Wide Frequency Response (8Hz-80KHz)
- Ultra-Low Distortion (0.0002%)
- Low Impedance (-72dB @ 32Ω)
- Near “Zero” Noise (1.1uVrms)
- Comprehensive Decoding Support
- High Dynamic Range (>127dB)
TANCHJIM Stargate II

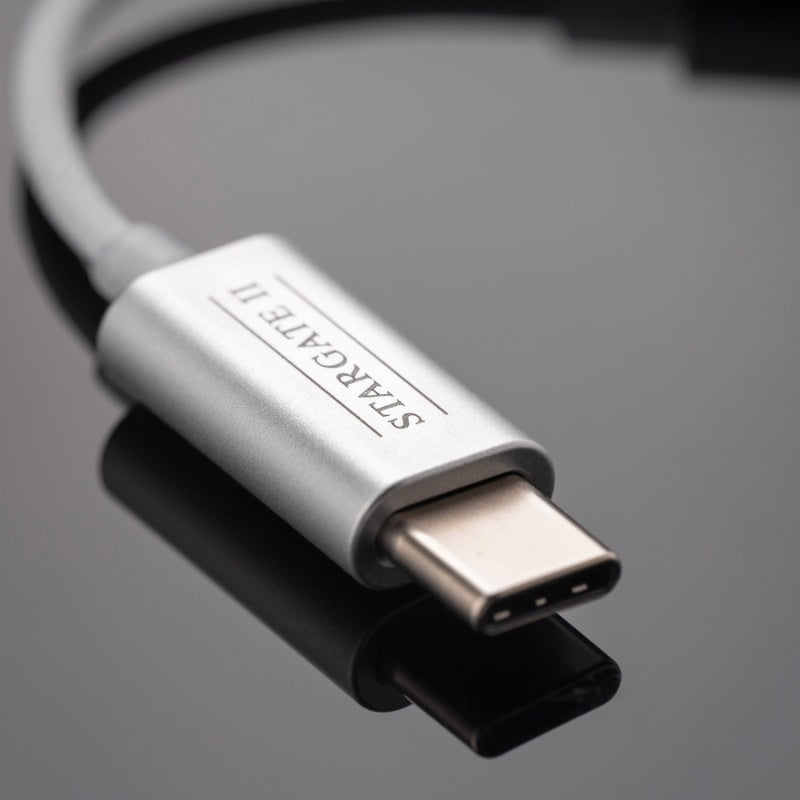

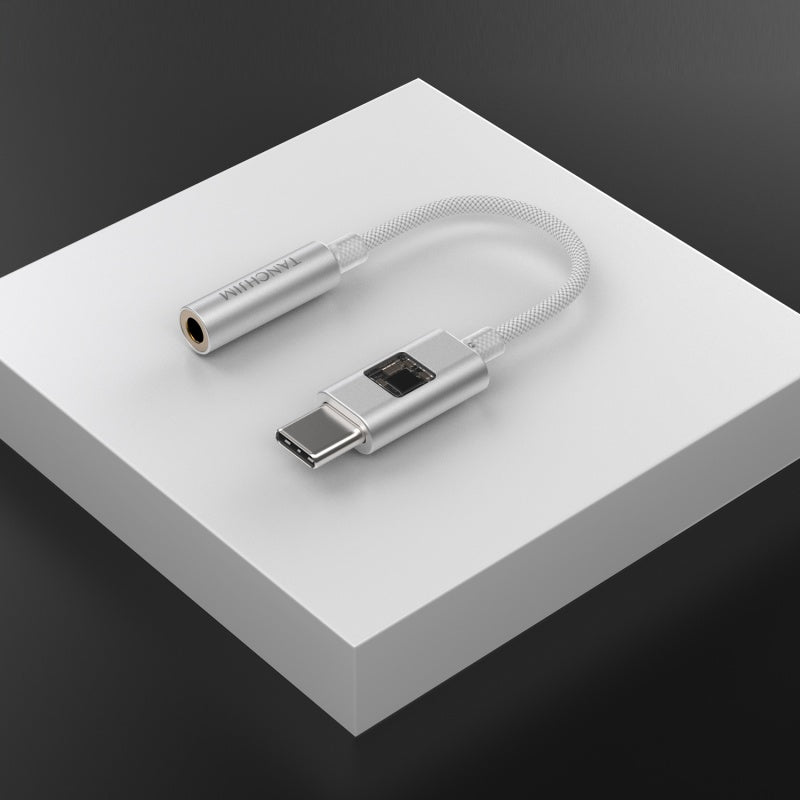

Ultra-Lightweight Design
Experience true minimalism and portability with this ultra-mini device weighing only 4.3g. The sleek aluminum alloy body is perfectly paired with oxygen-free copper cables featuring a braided insulation layer, echoing the elegant silver-white aesthetic of the StarGate 1. This design not only emphasizes simplicity and style but also ensures an effortlessly light and convenient user experience.
High-Fidelity Calls with Advanced ADC
Experience crystal-clear conversations and superior audio quality with our state-of-the-art ADC design. Supporting 48K/24-bit high-fidelity recording, it delivers an impressive 84dB signal-to-noise ratio, ensuring rich HIFI sound performance even during calls.
Benchmark Performance with CS43131 & Custom Main Controller
Stargate II features a custom main controller chip that delivers an 8-band customizable PEQ, working in tandem with the CS43131 decoding chip. This robust combination achieves a signal-to-noise ratio exceeding 127dB, enhanced resolution, and ultra-low distortion down to 0.0002%, setting the standard for its class.
High Dynamic Range, Powerful Performance
Crafted with high-performance circuit design and premium components, this device boasts an impressive 127.5dB dynamic range (DNR) and a 127.4dB signal-to-noise ratio (SNR), ensuring unrivaled audio clarity and robust performance.
Low Distortion, High SINAD
Stargate II delivers exceptional audio clarity with a total harmonic distortion as low as 0.0002% and an outstanding SINAD of up to 113dB, ensuring pristine sound performance and minimal interference.
Ultra-Low Noise, Minimal Crosstalk, and High Fidelity
Despite its compact design, Stargate II has optimized its peripheral circuitry to achieve an almost negligible noise floor of 1.1µVrms, ensuring that music playback remains undisturbed by device noise. Furthermore, with crosstalk reaching an impressive -72dB across 32 load measurements, it delivers highly separated and refined sound quality, especially when driving low-impedance headphones.
Ultra-Low Jitter, Rich Detail
Experience significantly reduced digital-to-analog conversion timing errors, which minimizes distortion and noise. This ultra-low jitter performance results in a "blacker" background and richer detail, with clear, well-separated vocals and instruments even during the dynamic highs of classical music.
Perfect Power Output
As a portable DAC, the goal isn’t to maximize power at the cost of size, battery life, or excessive heat. With outputs such as 82mW@16Ω (THD+N 1%), 62mW@16Ω (THD+N 0.0009%), 75mW@32Ω (THD+N 1%), 50mW@32Ω (THD+N 0.00015%), and 13.5mW@300Ω (THD+N 0.0002%), Stargate II delivers just the right amount of power for high-fidelity headphone driving under various load conditions, perfectly balancing performance with portability.
High-Definition Decoding Unlocks More Details
Stargate II supports PCM 32-bit/384kHz decoding and hardware DSD64/128/256, allowing it to reproduce sound with exceptional fidelity even in a compact form. This capability unveils subtle audio details, ensuring you hear every nuance in your music.
Unlock New Possibilities with the Proprietary App
Discover advanced sound customization with our dedicated app. It offers four precisely calibrated PEQ presets (derived from B&K4128 measurements to match key target curves, with exclusive options for TANCHJIM headphones) and an 8-band parametric equalizer for fine-tuning frequency, gain, and Q values. Customize your audio, share your settings for review, and explore community-sourced sound profiles—all designed to enhance your listening experience.
Enhanced Gaming Audio: Gain the Upper Hand
Experience game-changing audio tailored for FPS and other popular titles. Our sound enhancement boosts impact and immersion, giving you a competitive edge. Simply select your preferred profile through the Android app and plug into your PC, smartphone, or Nintendo Switch to instantly transform your gaming soundscape.
Technical Details
DSD: 64/128/256
75mW @ 32Ω (THD+N 1%)
